NEW Image Sensor & Processor
12fps Up to 12fps Mechanical Shutter
20fps Up to 20fps Silent Shutter
4K 120P 8K RAW / 4K 120P
Image Stabilization In-Body Image Stabilization
Dual Pixel Dual Pixel CMOS AF
Dual Card Dual Card Slots
A new era in image quality
New standards in high-resolution stills, and phenomenal 8K video quality to match. The EOS R5 advances image quality to a whole new level for stills and movies with a blistering 20fps electronic shutter or 12fps mechanically. The EOS R5 is accomplished, refined and built for magnificence.
Be the filmmaker
Commit your best work to stunning 8K video and relish the prospect of exciting new possibilities for creative capture. Offering full sensor width 8K internal and external RAW recording at up to 29.97fps and 4K at up to 119.88fps* in either 4:2:2 10bit Canon Log or 4:2:2 10bit HDR PQ, EOS R5 allows you to fully expand the world of filmmaking and explore dynamic new ways of telling your story.
*External recording is available up to 4K 59.94 fps only
More than face value
Now everything comes into focus. With advanced animal subject-tracking AF, The EOS R5 is able to recognise dogs, cats and birds detecting either the body, face, or eye of the subject..
For the professional image-maker who needs resolution, speed, and video capabilities, the Canon EOS R5 full-frame mirrorless camera features a newly developed 45MP CMOS sensor, which offers 8K raw video recording, 12 fps continuous shooting with a mechanical shutter, and is the first EOS camera to feature 5-axis sensor-shift image stabilization.
Beyond just resolution, the sensor also pairs with the refined DIGIC X image processor to usher in a new generation of Dual Pixel CMOS AF for quick, smooth, and intelligent focusing performance using 1053 selectable points that cover the entire field of view. This focusing system has also been updated to make use of Deep Learning technology for improved subject tracking as well as precise eye, face, and head-detection for both people and animals.
Complementing the imaging assets, the R5, while sporting a new design, also feels familiar to EOS 5-series users. An especially high-resolution 0.5" 5.76m-dot electronic viewfinder provides a realistic 120 fps refresh rate while the 3.2" rear touchscreen LCD monitor sports a vari-angle design to accommodate vlogging needs as well as benefit working from high and low angles. A top status LCD ensures an intuitive workflow, and the camera also features two memory card slots (CFexpress Type B, SD UHS-II), Bluetooth and Wi-Fi wireless connectivity.
400 MP high resolution IBIS file
When using the EOS R5 with firmware 1.8.1 or later, the IBIS high resolution shooting mode can create (approximately) 400 megapixel files in-camera without the need for external software. This feature can be used in certain situations where detailed high resolution files are required. Examples include art reproductions and building signs.
45 MP full-frame sensor and DIGIC X processor
Based on a newly developed 45-megapixel full-frame CMOS sensor, the EOS R5 offers both high-resolution still and video output, complemented by a finely tuned DIGIC X image processor with abundant speed. increase. ISO 100-51,200 sensitivity, expandable to ISO 102,400, is suitable for working in a wide range of lighting conditions, ideal for high-speed continuous shooting up to 12 fps with the mechanical shutter or silent 20 fps continuous shooting with the electronic shutter. I am working on a moving subject. 8K30 Raw and 4K120 video recording
The 45MP full-frame sensor not only benefits from still images, but it also enables impressive high-resolution DCI 8K 30fps RAW video recording internally, as well as his 4K recording at up to 120fps at 4.2 10-bit using Canon Log. HDR-PQ recording is also possible, with in-camera HDR production and external recording via HDMI port supporting clean 4K output at up to 60 fps. Both All-I and IPB compression options are available, and Dual Pixel CMOS AF is available when shooting up to 8K Raw.
HDMI 8K Raw output to Atomos Ninja V+Firmware update 1.4.0 adds the ability to output his 8K30, 10-bit video for raw ProRes recording to the Atomos Ninja V+ recorder via an optional HDMI cable. (Please note that the main unit may become hot.)
Dual Pixel CMOS AF II
The updated Dual Pixel CMOS AF II has 1053 selectable focus points covering nearly 100% of the frame for wide, even coverage. This focusing system provides smooth, fast focusing performance, similar to how camcorders focus. This system integrates two individual photodiodes in each pixel to provide a wide and dense network of phase detection collecting elements over most of the image sensor, reducing focus hunting for faster, more direct imaging. Implements focus placement control. When working with still images, this focus system offers fast and accurate focus, making it ideal for capturing and tracking moving subjects, allowing you to achieve critical focus in every shot. When shooting video, the Video Servo AF mode provides smooth and natural focus when changing between different subjects or different distances in the scene, and also features the ability to set tracking sensitivity, AF speed and face tracking priority. I'm here. Benefiting from the Touch AF system, rack focus is enabled simply by touching an element in the scene on the touchscreen, allowing you to change focus in an intuitive manner. Subject tracking in cinema is also enhanced by the dual pixel CMOS AF system's ability to recognize subjects and maintain focus when working in changing or cluttered landscapes.
Subject tracking also benefits from the use of deep learning technology. This gradually improves the ability of the focus system to identify both human and animal subjects quickly and accurately. The technology also supports more sophisticated eye, face, and head detection for people and animals, making it suitable for portrait applications.
sensor shift image stabilization
The R5 is the first of his EOS cameras to feature 5-axis sensor-shift image stabilization, which compensates for up to 8 stops of shake, effectively canceling out camera shake and making it suitable for handheld shooting with slow shutter speeds. This stabilization system also works in tandem with lens-based optical image stabilization for both native RF and adaptive EF lenses.
Case design and wireless connectivity
A high-resolution 0.5-inch, 5.67m-dot electronic viewfinder provides a bright and detailed medium for eye-level viewing, and a fast refresh rate of 120fps provides natural motion for a more realistic viewfinder experience provides a performance of

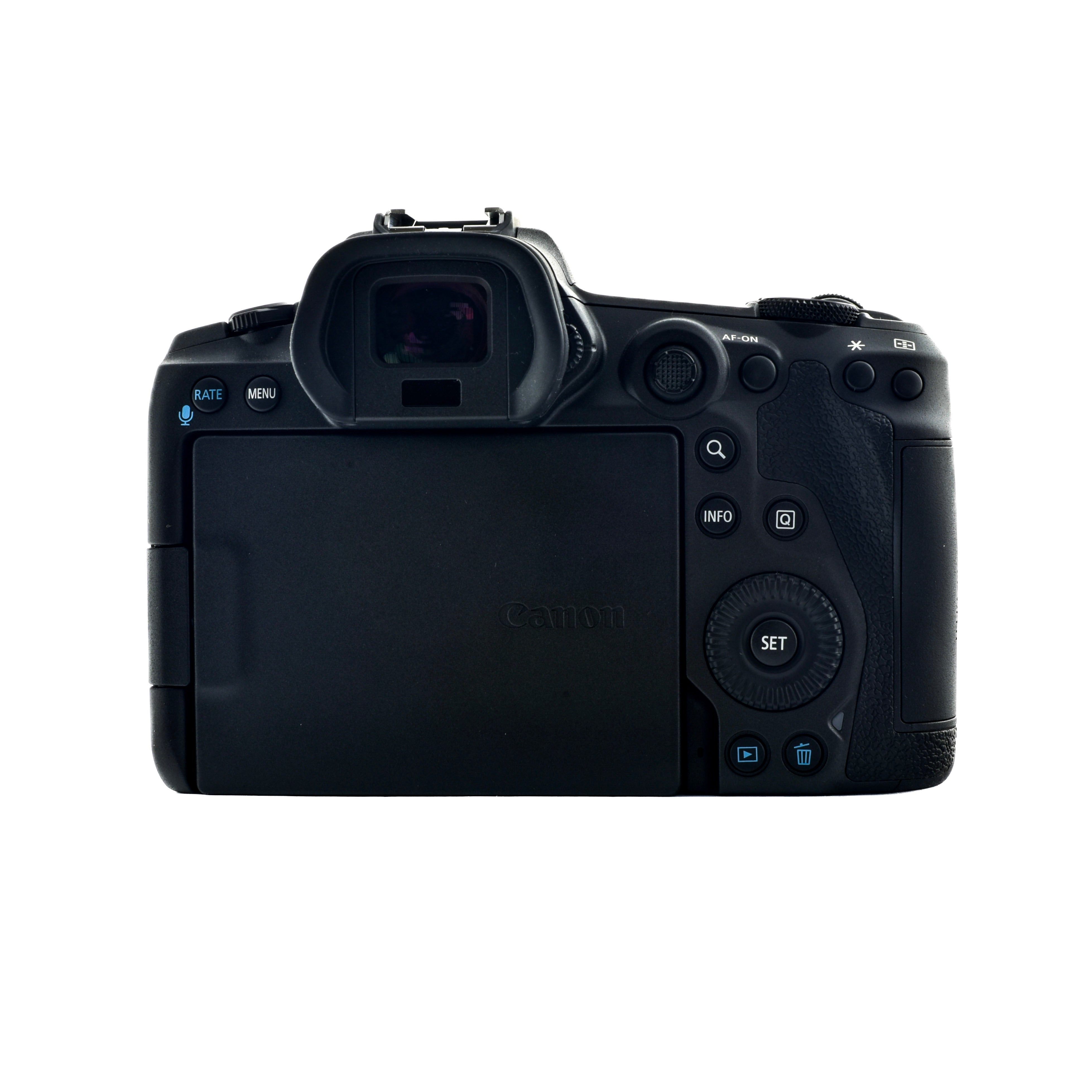

The 3.2-inch 2.1m dot LCD touch panel on the back adopts a vari-angle design that supports frontal shooting. B. For vlogging needs and working from high and low angles.

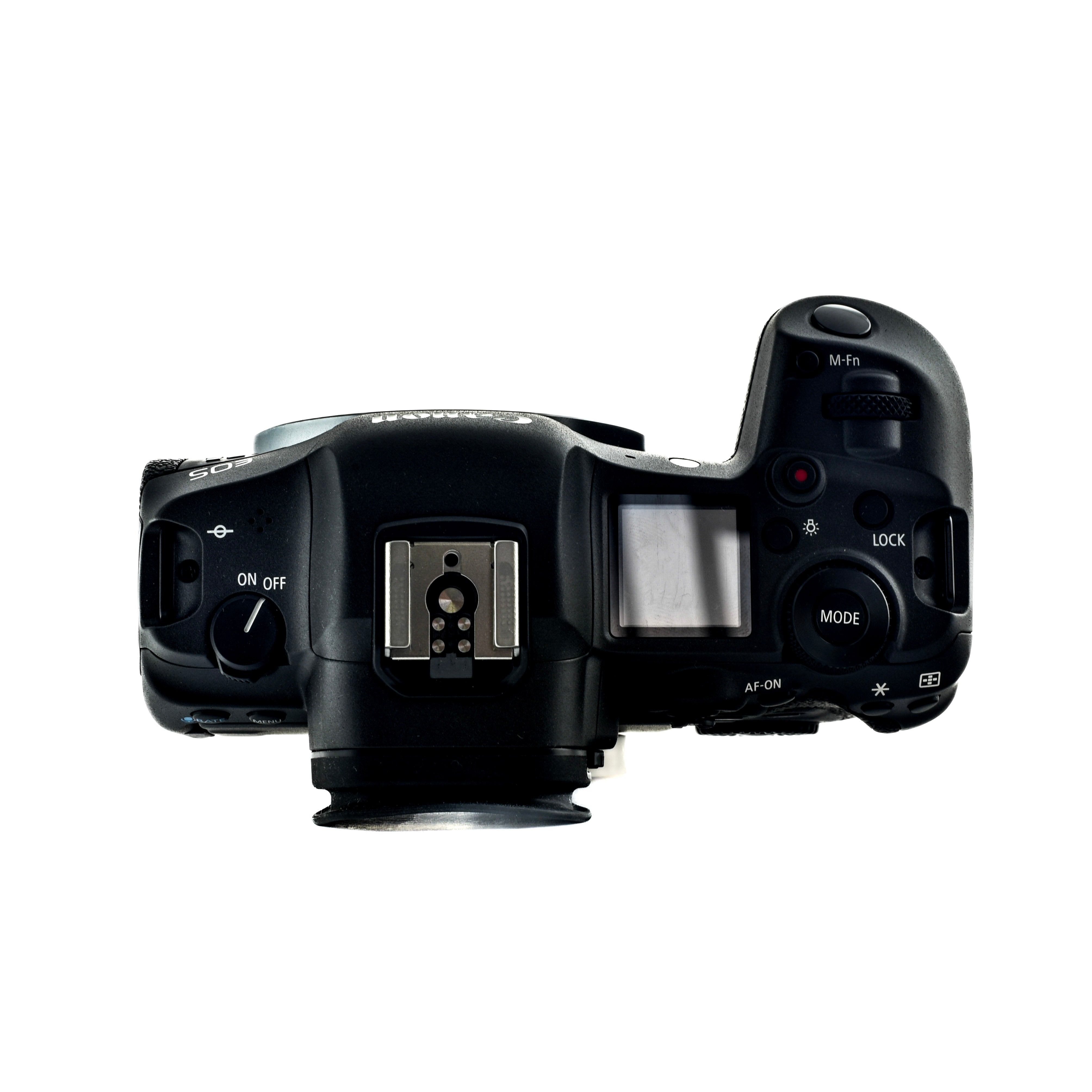

Quickly check camera and recording settings with the status LCD on top.
CFexpress Type B and SD UHS-II memory card slots for flexible storage needs. A CFexpress slot is ideal for 8K video and high-speed, high-resolution burst capture, while an SD card slot maintains a familiar form factor for broad compatibility. Both 3.5mm headphone and external 3.5mm microphone jacks are provided for enhanced audio monitoring and recording capabilities.
The ingenious body design features four separate control wheels placed across the body for intuitive tactile control, and a joystick control on the back of the camera for focus point selection and menu selection. navigation is quick and intuitive.#
The durable and weatherproof case design is built to withstand harsh working conditions and inclement weather.
Both 5GHz and 2.4GHz WiFi bands are available for fast file transfers to mobile devices, and Bluetooth is also available, providing always-on device connectivity via the Canon Camera Connect app.
